Step 1:

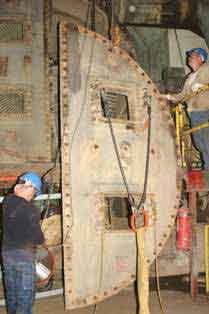

Open the condenser-remove the water boxes and/ or cover plates on both sides.
|
 |
 |
|
|
Step 2:
Cut the tubes behind the tube sheet on one end of the condenser.
|
 |
 |
|
|
Step 3:
Place water sprinklers over tube bank and the install trolley beam.
|
 |
 |
|
|
Step 4:
Pull the tubes out 6 inches from the face of the tube sheet on the opposite side of the tube cut. Stubs can also be removed with the collet puller.
|
 |
 |
|
|
Step 5:
Pull the entire tube from the tube sheet- the PSR Extractor also flattens the tube as it is removed. Gin Pole- shown on the right.
|
 |
 |
|
|
Step 6:
Chops the tubes into small pieces which is a highly desirable, compact form of scrap.
|
 |
 |
|
|
